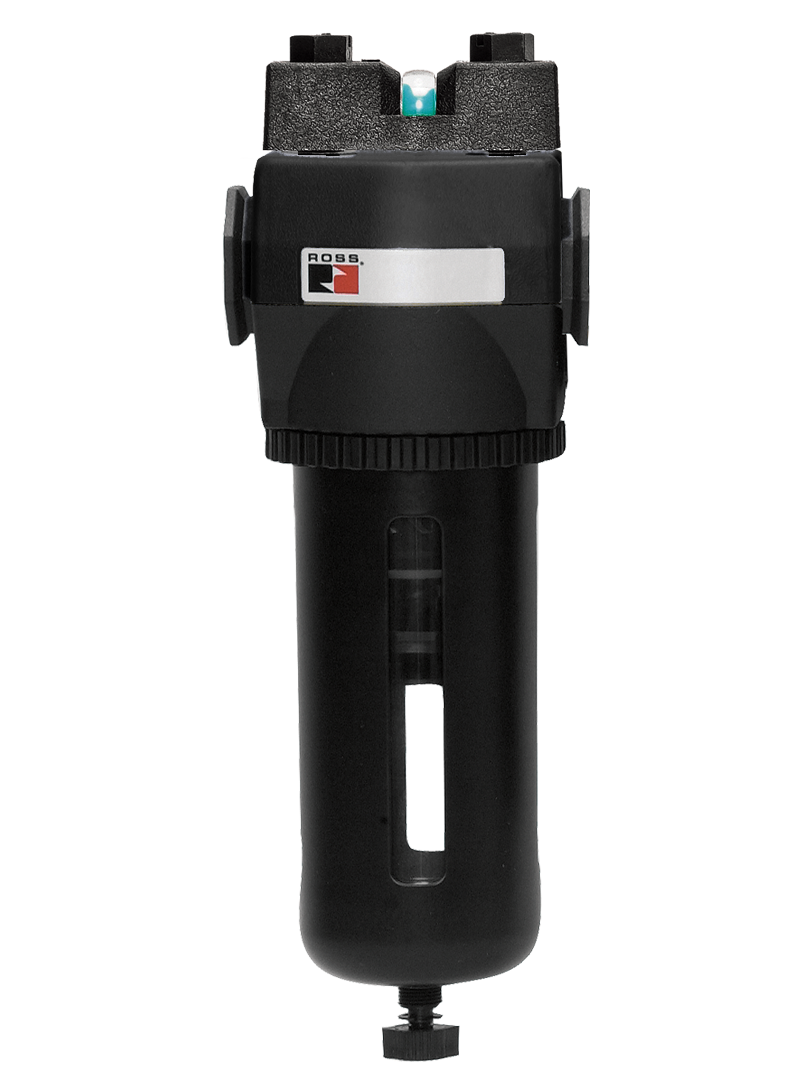

MD4 Series MD450MCABE2E
Need Help? No Problem!
Customer Service
Technical Service
+55-11-4335-2200
Need Help? No Problem!
Customer Service
Technical Service
+55-11-4335-2200
Product Information
| PORT SIZE | 3/4 |
| PORT THREAD | BSPP |
| DRAIN TYPE | Automatic |
| FILTER TYPE | 0.3 µm |
| BOWL TYPE | Metal |
| BOWL SIZE | 9 oz (266 ml) |
| FILTER MATERIAL | Borosilicate Glass |
| GAUGE | Large Dual Face w/ N.O. Reed Switch |
| PORT TYPE | Threaded Ports |
| MOUNTING | Modular |
| MAXIMUM FLOW | 158 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | 15 to 200 psig (1 to 14 bar) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
+
MD4 Series
MD450MCABE2E
