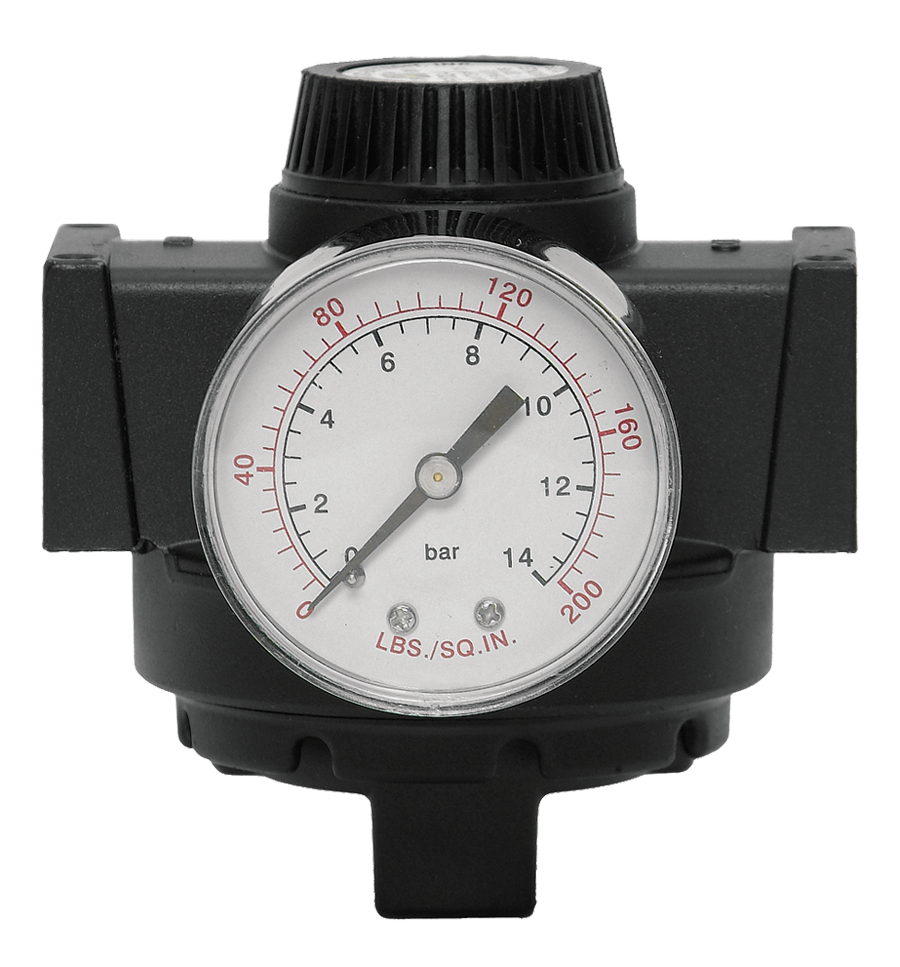

Full-Size Series Remote Pilot Reg 5X00B3025
- Modular mounting
- Diaphragm construction
- Self-relieving
Need Help? No Problem!
Customer Service
Technical Service
+55-11-4335-2200
Need Help? No Problem!
Customer Service
Technical Service
+55-11-4335-2200
Product Information
| PORT SIZE | 3/8 |
| PORT THREAD | NPT |
| RELIEVING | Self-Relieving |
| PILOT | Remote |
| FLOW OPTION | Standard |
| ADJUSTMENT | Knob |
| GAUGE psig (bar) | 0 - 200 (0 13.8) |
| PORT TYPE | Threaded Ports |
| CONSTRUCTION | Diaphragm |
| MOUNTING | Modular |
| MAXIMUM FLOW | 150 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 300 psig (20.7 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 0 - 200 (0 - 13.8) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
+
Full-Size Series Remote Pilot Reg
5X00B3025
Contact Us for a 3D Model
+
Full-Size Series Remote Pilot Reg
5X00B3025
Contact ROSS Brasil for Ordering Information
+
