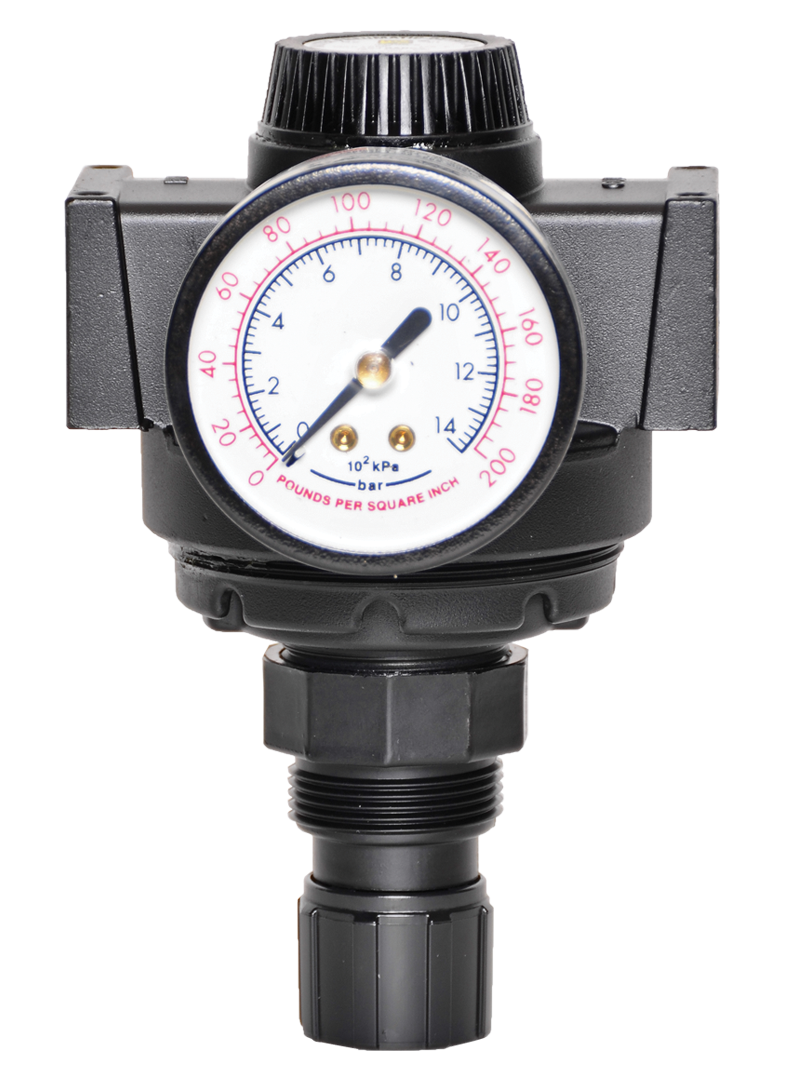

Full-Size Precision Series C5213C4018
- Modular mounting
- Diaphragm construction
- Self-relieving
Need Help? No Problem!
Customer Service
Technical Service
+55-11-4335-2200
Need Help? No Problem!
Customer Service
Technical Service
+55-11-4335-2200
Product Information
| PORT SIZE | 1/2 |
| PORT THREAD | BSPP |
| RELIEVING | Self-Relieving |
| FLOW OPTION | Standard |
| ADJUSTMENT | Knob |
| GAUGE psig (bar) | 0-200 (0-13.8) |
| PORT TYPE | Threaded Ports |
| CONSTRUCTION | Diaphragm |
| MOUNTING | Modular |
| PANEL MOUNT NUT | Not Included |
| MAXIMUM FLOW | 140 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 300 psig (20.7 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 15 - 200 (1 - 13.8) |
| AMBIENT TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
| MEDIA TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
+
