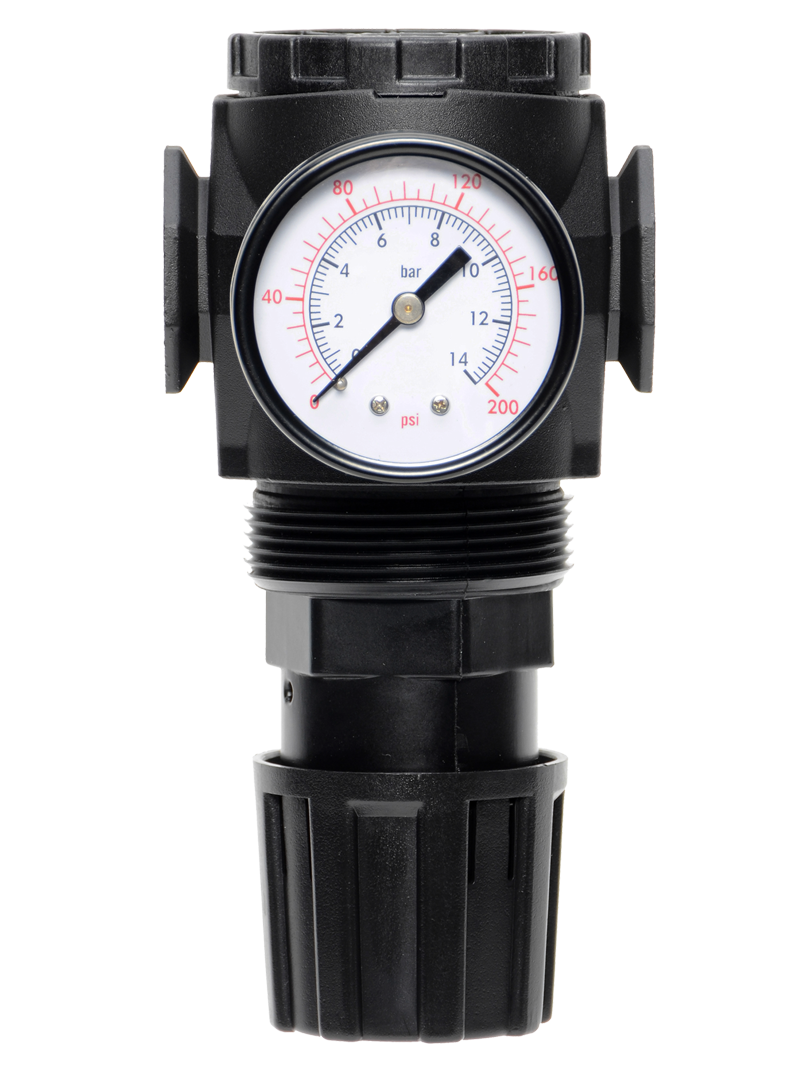

MD3 Series MD352KASC32D
- Modular mounting
- Diaphragm construction
- Self-relieving
- Reverse flow option
- Knob or T-Handle adjustment
Need Help? No Problem!
Customer Service
Technical Service
+55-11-4335-2200
Need Help? No Problem!
Customer Service
Technical Service
+55-11-4335-2200
Product Information
| PORT SIZE | 3/8 |
| PORT THREAD | NPT |
| RELIEVING | Self-relieving |
| FLOW OPTIONS | Standard |
| ADJUSTMENT | Knob |
| GAUGE psig (bar) | No Gauge |
| PORT TYPE | Threaded Ports |
| CONSTRUCTION | Diaphragm |
| MOUNTING | Modular |
| PANEL MOUNT NUT | Included |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 200 psig (14 bar) |
| REGULATED PRESSURE RANGE psig (bar) | No Gauge, with Panel Mount Nut |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
+
MD3 Series
MD352KASC32D
Contact Us for a 3D Model
+
MD3 Series
MD352KASC32D
Contact ROSS Brasil for Ordering Information
+
