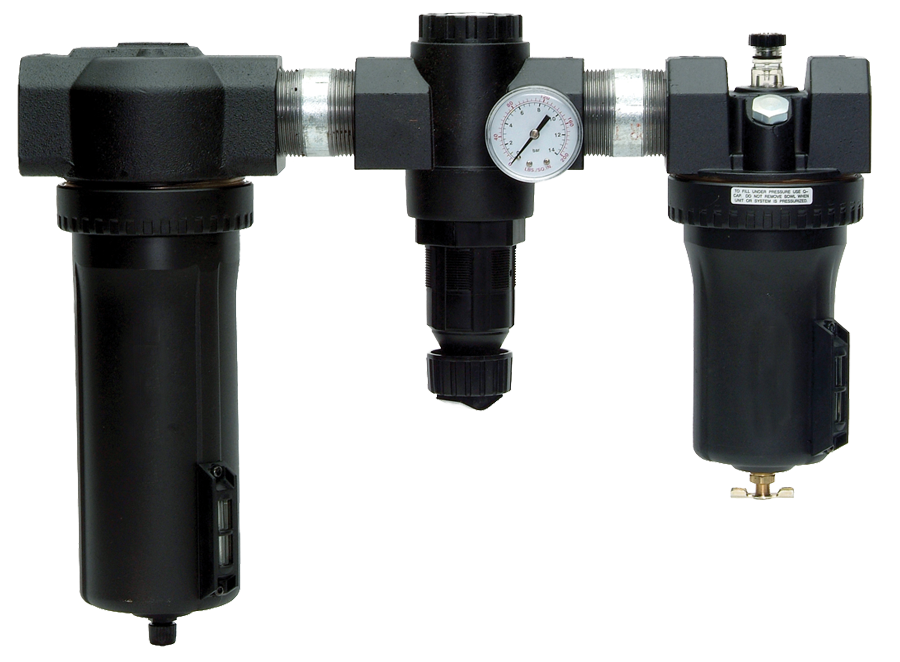

High-Capacity C5H00C7314
- Individual filter, piston-type regulator, wick-feed or sight feed lubricator
- Inline mounting
- Polycarbonate plastic bowls with steel shatterguard, metal bowls with clear nylon sight glass
- Internal automatic drain, manual drain, external automatic drain, or electronic drain filter
- Self-relieving, or non-relieving regulator
- Pressure gauge
Need Help? No Problem!
Customer Service
Technical Service
+55-11-4335-2200
Need Help? No Problem!
Customer Service
Technical Service
+55-11-4335-2200
Product Information
| PORT SIZE | 1-1/4 |
| THREAD TYPE | NPT |
| PORT TYPE | Threaded Ports |
| FR BOWL TYPE | Metal |
| DRAIN TYPE | Manual |
| FILTER TYPE | 40 µm |
| FILTER MATERIAL | Polyethelene |
| FR BOWL SIZE | 35 (1000) |
| REGULATOR CONSTRUCTION | Piston |
| RELIEVING | Self-Relieving |
| ADJUSTMENT | Knob |
| GAUGE psig (bar) | 0 - 200 (0 - 14) |
| LUBRICATOR TYPE | Sight-Feed |
| LUBRICATOR BOWL TYPE | Metal |
| LUBRICATOR BOWL SIZE | 35 (1000) |
| FILL METHOD | Quick Fill Cap |
| MOUNTING | Inline |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | 0 to 200 psig (0 to 14 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 0 - 100 (0 - 6.9) |
| MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 175 F (4 to 79 C) |
+
High-Capacity
C5H00C7314
Contact Us for a 3D Model
+
High-Capacity
C5H00C7314
Contact ROSS Brasil for Ordering Information
+
